Description
Portable LiDAR for field mapping, surveying and design.

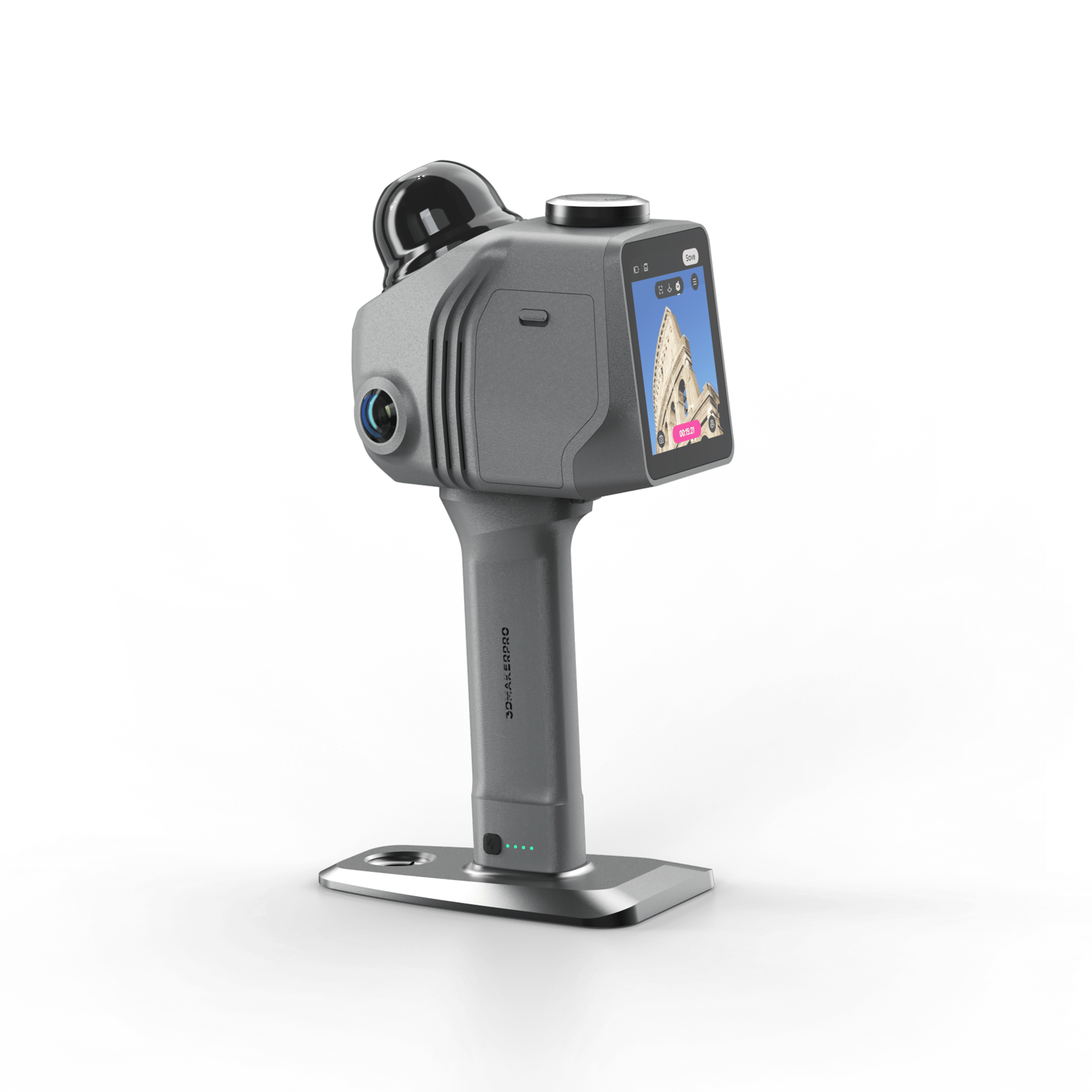

The 3DMakerpro Raven is a lightweight handheld SLAM LiDAR scanner for capturing buildings, sites and outdoor spaces as accurate, true-color point clouds. Choose the Standard edition, the dual-camera Max, or Max RTK for georeferenced results.
Key Features
- 4K true-color capture with 12 MP 1/2″ camera system (dual cameras on Max editions)
- Scan range up to 100 m with a 50 m scanning radius
- 360° × 40° field of view at 150,000 points per second
- 2-hour swappable battery grip with external power support
- Lightweight 1.1 kg design with 3.9″ AMOLED screen
- Mounts for bicycle, vehicle, backpack and drone (sold separately)
- Free RayStudio scanning software
- Two-year warranty
What’s in the Box
Raven (Standard)
- Raven scanner (1× camera)
- Battery grip
- Holder base
- Protective case
- 128 GB TF card
Raven Max
- Raven Max scanner (2× camera)
- Battery grip
- Holder base
- Protective case
- 128 GB TF card
Raven Max RTK
- Raven Max scanner (2× camera)
- Battery grip
- Holder base
- Protective case
- 128 GB TF card
- RTK kit
- TF card reader
- Carrying case

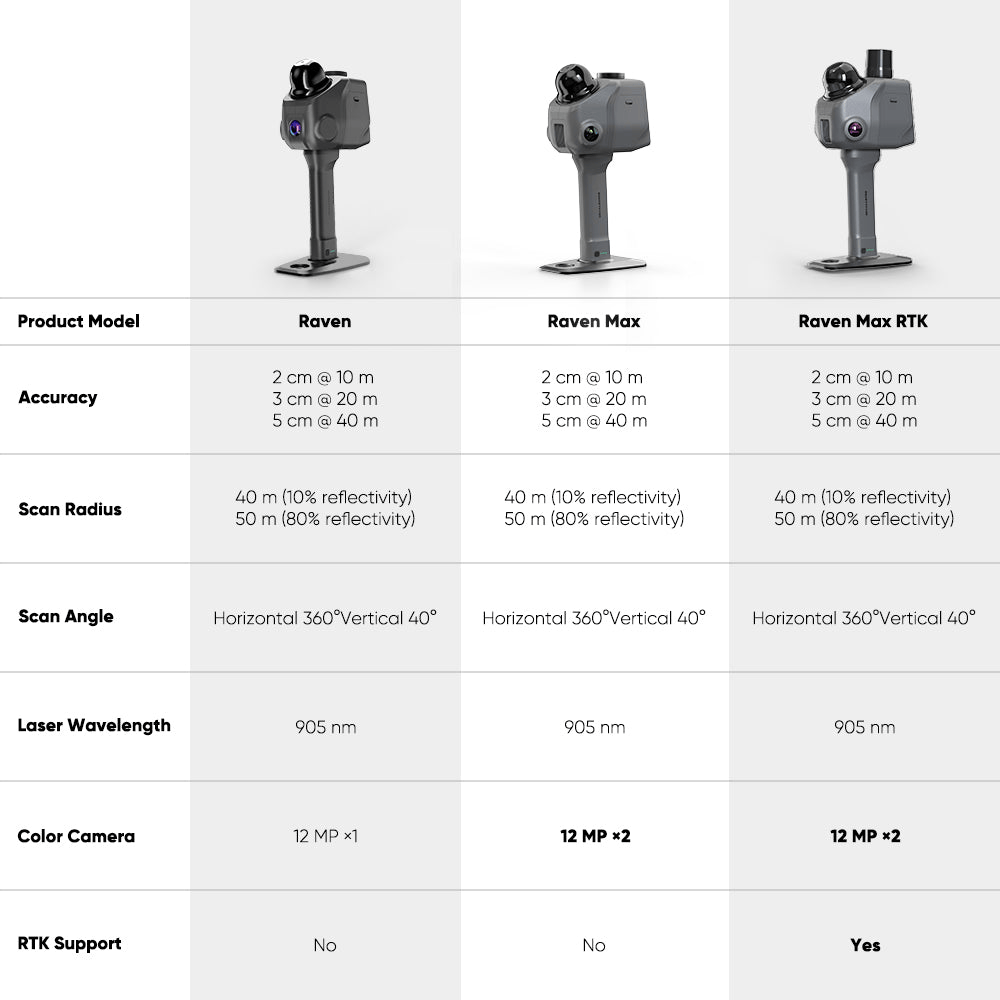

Specifications
| Accuracy | 2 cm @ 10 m; 3 cm @ 20 m; 5 cm @ 40 m |
|---|---|
| Scan radius | 40 m @ 10% reflectivity; 50 m @ 80% |
| Scan range | 80–100 m |
| Field of view | 360° horizontal × 40° vertical |
| Point rate | 150,000 pts/s |
| Cameras | Standard: 1× 12 MP; Max / Max RTK: 2× 12 MP (1/2″ sensor) |
| Laser | 905 nm, Class 1 eye safe |
| Screen | 3.9″ AMOLED |
| Processor / storage | 8-core 2.4 GHz; 32 GB + TF card expansion |
| Battery | 12,000 mAh grip, about 2 h; swappable |
| Ports | USB-C data; 65 W PD USB-C power |
| Wireless | Wi-Fi 5 |
| Output formats | LAS, PCD, PLY, OBJ, E57, XYZ |
| Dimensions | 148 × 288 × 98 mm |
| Weight | 1.1 kg |
| Software requirements | Windows 11 or later (macOS not supported) |
| Recommended PC | Intel Core i7, 64 GB RAM, NVIDIA RTX 4060 (16 GB VRAM) |
| Gaussian Splatting | Requires an NVIDIA GPU |
