Description
The easy way into 3D scanning.

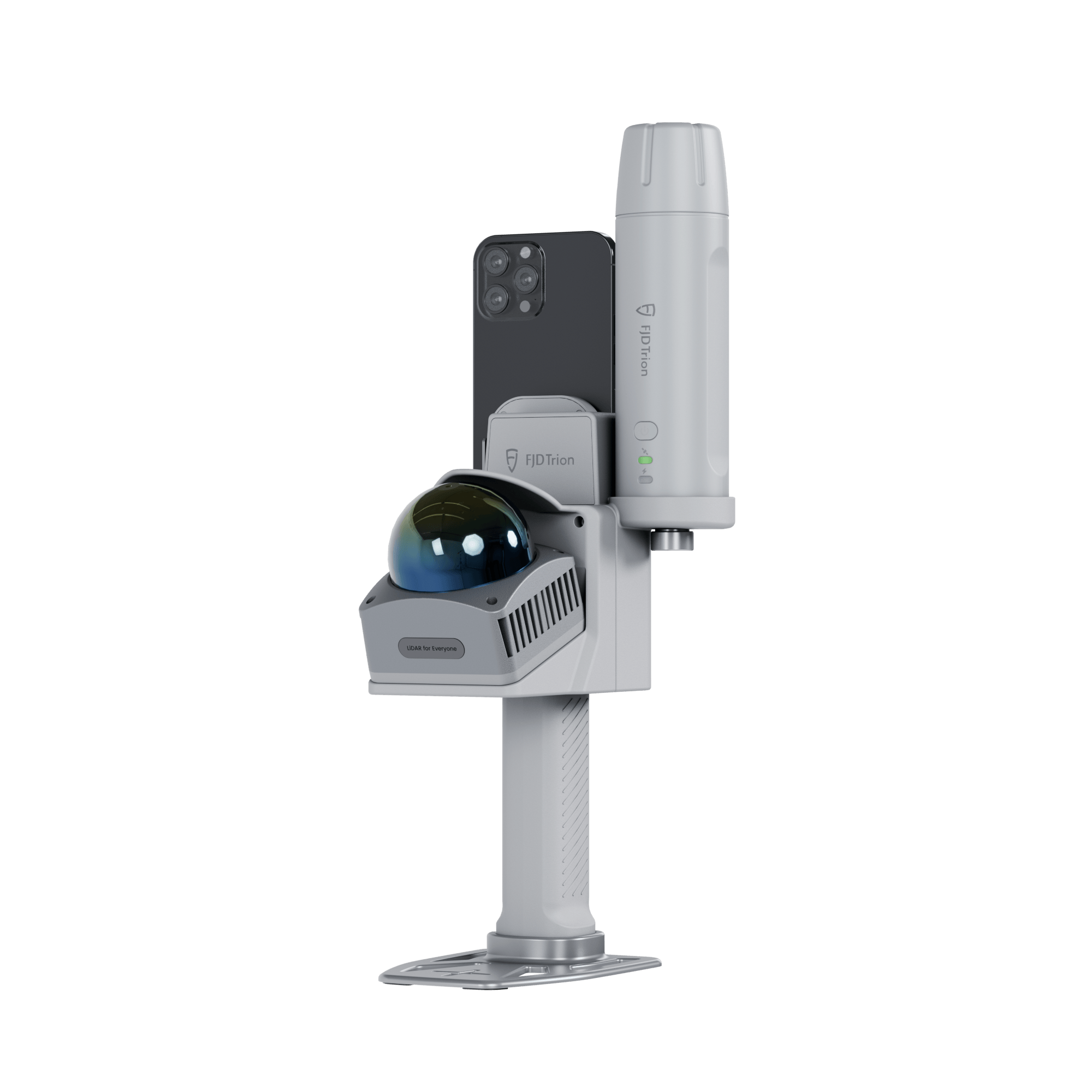

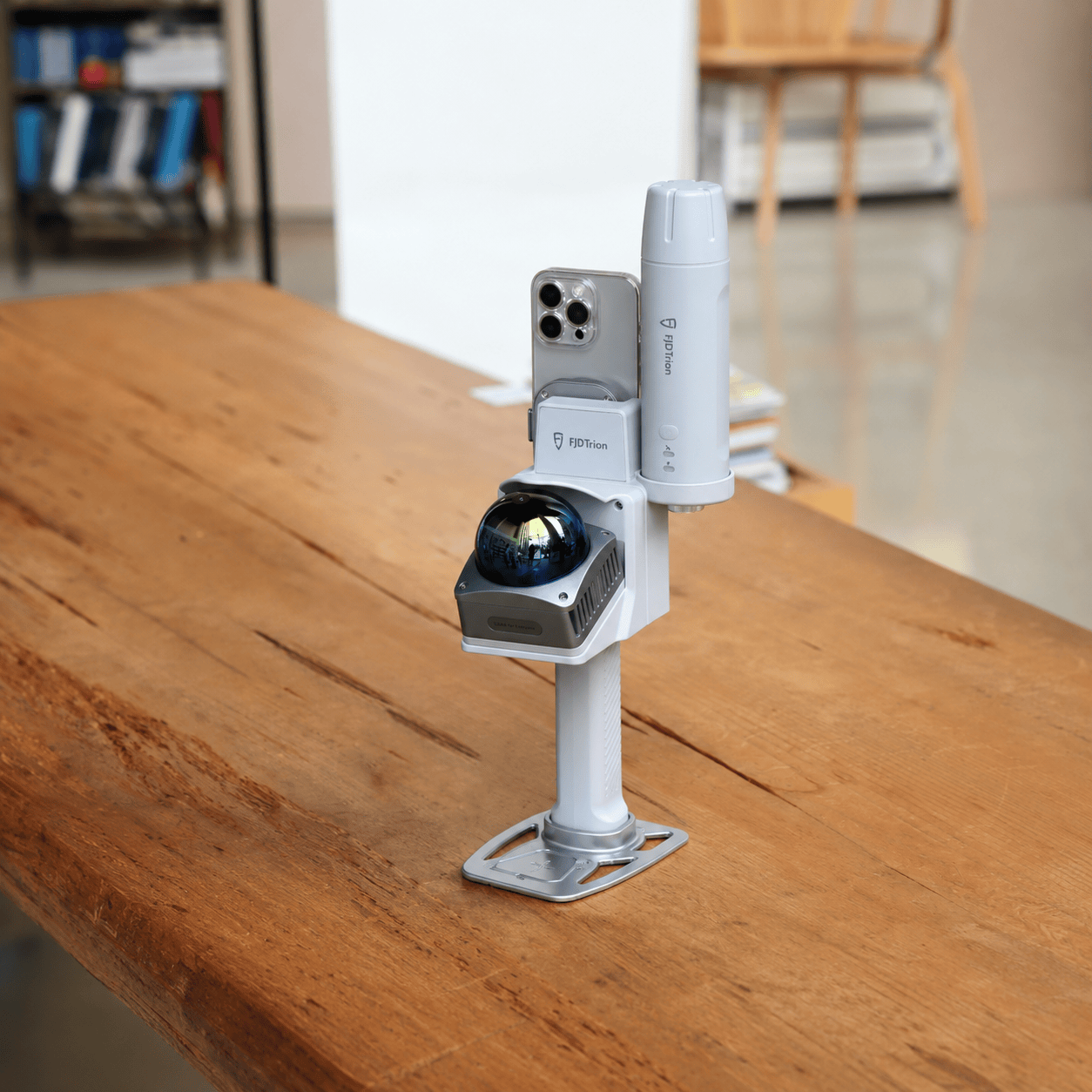

Capture indoor and outdoor spaces with the FJD Trion V4e Go, then create 3D point clouds, floor plans and precise models in Creative Portal. Pair it with the V4e Pro GNSS receiver (sold separately) for georeferenced results.
Key Features
- 154,600 points per second scan rate
- Up to 1 cm post-processed relative accuracy
- Up to 50 m range
- Fast clip-on magnetic mount for your smartphone
- Over 5 hours runtime per charge
- Cloud-ready workflow with Creative Portal
What’s in the Box
- FJD Trion V4e Go scanner
- Magnetic mounts
- Mounting base
- Cables
- Wrist strap
- Thumb screw
Specifications
| Point rate | 154,600 pts/s |
|---|---|
| Range | 0.05–50 m (90% reflectivity) |
| Accuracy (post-processed) | Relative 1 cm, absolute 3 cm |
| Field of view | 360° horizontal; −10° to 60° vertical |
| Laser | 905 nm, Class 1 eye safe |
| Battery | 3.6 V / 6,700 mAh; about 5 h operating time |
| Charging | 5 V / 3 A, about 3 h |
| Ports | USB 3.0 data; USB 2.0 charging |
| Dimensions | 140 × 167 × 270 mm |
| Weight | 1,025 g (main unit) |
| Mount | 5/8-inch internal thread |
| Operating temperature | −20 °C to 60 °C |
| Phone compatibility | iPhone 15 series and later; Samsung Galaxy S25 series and later; Google Pixel 10 series and later (see manufacturer list) |
Phone and phone case not included. GNSS receiver sold separately.
